Product 3D Image Get couponsLFP Series RF Capacitance Level Transmitter
Product introduction
The RF capacitance level transmitter operates based on the principle that changes in material or liquid level cause a change in capacitance. The probe and the conductive tank wall form an equivalent capacitor. When the probe is in air, the capacitance (CA) is low. As material fills the tank and adheres to the probe, the capacitance increases. When the tank is full and the probe is completely covered, the capacitance reaches its maximum (CB). The measurable range is the difference in capacitance (ΔC = CB - CA), recommended for use within ΔC = 25 to 2000 pF.
Key Features

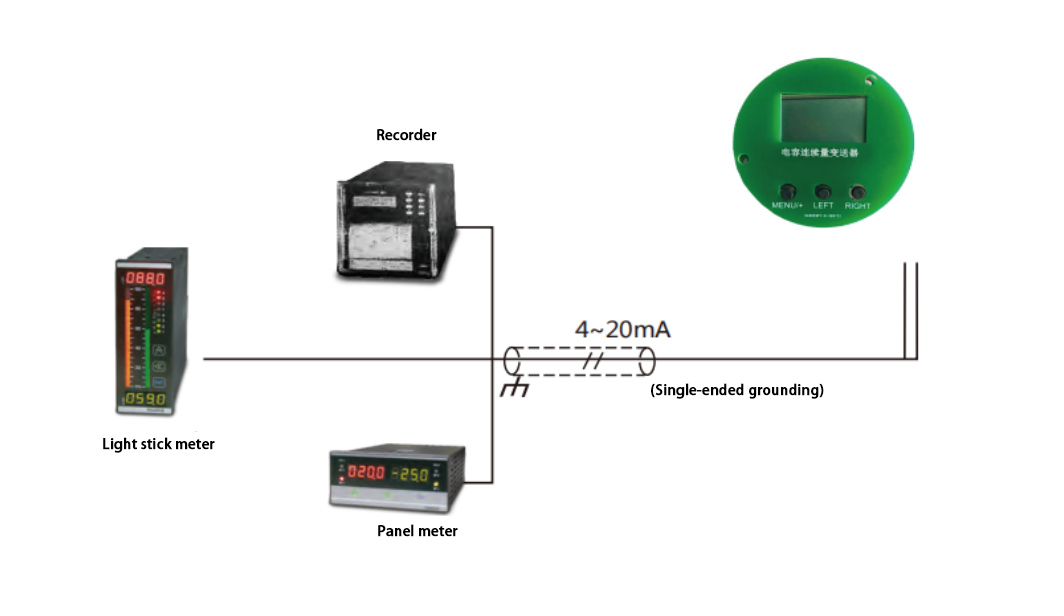

Composition Structure

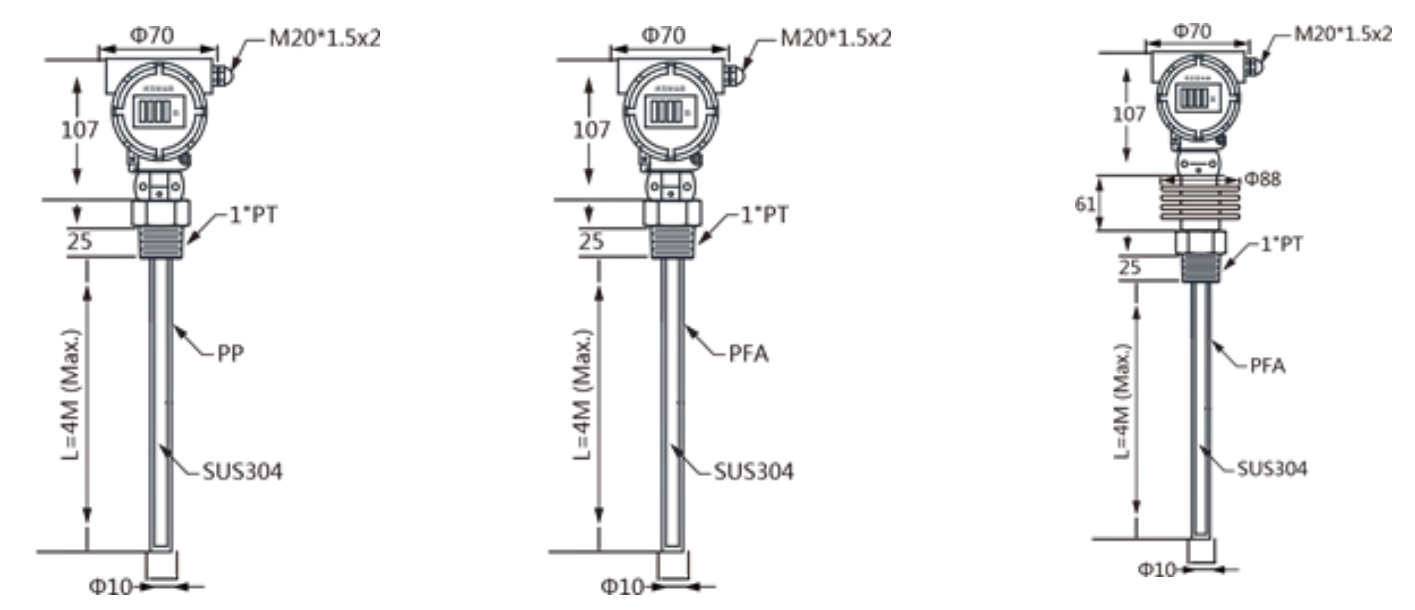

Standard Size 1
Standard Size 1
Selection Table
Low power consumption, easy wiring (2-wire system)
Max. current consumption: 20mA
Excellent linearity (<±1% FS or ±0.5pF)
Temperature compensation, low temp. coefficient (±0.2% FS/°C or 0.1pF/°C)
Easy two-point calibration
No blind zones, suitable for all types of tanks
Resistant to high temperature, high pressure, and corrosive environments
On-site LED display
|
Model |
LFP10 (Rod, PP-coated) |
LFP20 (Rod, PP-coated) |
LFP21 (High-temp Rod, PFA-coated) |
|
Sensing Material |
SUS304 cable + PP coating |
SUS304 cable + PFA coating |
SUS304 + PFA coating |
|
Ambient Temp. |
-40~85°C |
-40~85°C |
-40~85°C |
|
LCD Display Temp. |
-20~85°C |
-20~85°C |
-20~85°C |
|
Operating Temp. |
-40~85°C |
-40~85°C |
-40~200°C |
|
Operating Voltage |
18~30VDC |
18~30VDC |
18~30VDC |
|
Analog Output |
4~20mA (2-wire) |
4~20mA (2-wire) |
4~20mA (2-wire) |
|
Digital Output |
HART (optional) |
HART (optional) |
HART (optional) |
|
Detection Range |
20~2000pF |
20~2000pF |
20~2000pF |
|
Accuracy |
±1% FS or ±0.5pF |
±1% FS or ±0.5pF |
±1% FS or ±0.5pF |
|
Temp. Effect |
<±0.2% FS/°C or 0.1pF/°C |
<±0.2% FS/°C or 0.1pF/°C |
<±0.2% FS/°C or 0.1pF/°C |
|
Enclosure Protection |
IP65 |
IP65 |
IP65 |
|
Process Connection |
1"PT or 1"x5kg/cm² |
1"PT or 1"x5kg/cm² |
1"PT or 1"x5kg/cm² |
|
Weight |
Approx. 2.3kg (1m) |
Approx. 2.3kg (1m) |
Approx. 2.8kg (1m) |
|
Pressure |
32kg/cm² |
32kg/cm² |
32kg/cm² |
|
Note: High-temperature rod versions must use PFA coating (Model LFP21 series). |
|||
|
Model |
LFP30 (Cable, PP-coated) |
LFP31 (High-temp Cable, PFA-coated) |
LFP40 (Standard Rod Type) |
|
Sensing Material |
SUS304 cable + PP coating |
SUS304 cable + PFA coating |
SUS304 + PFA or PP |
|
Ambient Temp. |
-40~85°C |
-40~85°C |
-40~85°C |
|
LCD Display Temp. |
-20~85°C |
-20~85°C |
-20~85°C |
|
Operating Temp. |
-40~85°C |
-40~200°C |
-40~85°C (customizable to 200°C) |
|
Operating Voltage |
18~30VDC |
18~30VDC |
18~30VDC |
|
Analog Output |
4~20mA (2-wire) |
4~20mA (2-wire) |
4~20mA (2-wire) |
|
Digital Output |
HART (optional) |
HART (optional) |
HART (optional) |
|
Detection Range |
20~2000pF |
20~2000pF |
20~2000pF |
|
Accuracy |
±1% FS or ±0.5pF |
±1% FS or ±0.5pF |
±1% FS or ±0.5pF |
|
Temp. Effect |
<±0.2% FS/°C or 0.1pF/°C |
<±0.2% FS/°C or 0.1pF/°C |
<±0.2% FS/°C or 0.1pF/°C |
|
Enclosure Protection |
IP65 |
IP65 |
IP65 |
|
Process Connection |
1"PT or 1"x5kg/cm² |
1"PT or 1"x5kg/cm² |
1"PT or 1"x5kg/cm² |
|
Weight |
Approx. 2.3kg (1m) |
Approx. 2.3kg (1m) |
Approx. 2.8kg (1m) |
|
Pressure |
32kg/cm² |
32kg/cm² |
32kg/cm² |
|
Note: High-temperature cable models must use PFA coating (Model LFP31 series). |
|||
|
LFP- |
N |
1 |
TD |
4 |
Q |
1 |
L0 |
T |
P |
Detailed |
|
LFP- |
|
|
|
|
|
|
|
|
|
Right Column (LFP Series RF Capacitance Level Transmitter) |
|
Certification
|
N |
|
|
|
|
|
|
|
|
Non-Ex-proof |
|
I |
|
|
|
|
|
|
|
|
Intrinsically Safe: Ex ia IICT4/T6 Ga/Gb |
|
|
D |
|
|
|
|
|
|
|
|
Explosion-Proof: Ex d IICT4/T6 Ga/Gb |
|
|
输出方式
|
|
1 |
|
|
|
|
|
|
|
24VDC, Output: 4-20mA (2-wire) |
|
|
2 |
|
|
|
|
|
|
|
24VDC, Output: 4-20mA + HART (2-wire) |
|
|
Process Connection
|
|
|
TD |
|
|
|
|
|
|
3/4" PT Thread |
|
|
|
TE |
|
|
|
|
|
|
G1 Thread |
|
|
|
|
TG |
|
|
|
|
|
|
1" PT Thread (Standard) |
|
|
|
|
FA |
|
|
|
|
|
|
DN25 PN1.6 RF Flange |
|
|
|
|
FD |
|
|
|
|
|
|
DN50 PN1.6 RF Flange |
|
|
|
|
SS |
|
|
|
|
|
|
Special thread (≥3/4") or flange (≥DN25) available |
|
|
Wetted Material
|
|
|
|
4 |
|
|
|
|
|
SUS304 + PFA |
|
|
|
|
6 |
|
|
|
|
|
SUS304 + PTFE (Sintered) |
|
|
|
|
|
7 |
|
|
|
|
|
SUS304 + Ceramic (200–600°C) |
|
|
|
|
|
8 |
|
|
|
|
|
SUS316 + Ceramic (200–600°C) |
|
|
|
|
|
9 |
|
|
|
|
|
SUS310S + Ceramic (200–1100°C) |
|
|
Housing Material |
|
|
|
|
A |
|
|
|
|
Aluminum alloy with coating |
|
Electrical Interface
|
|
|
|
|
|
1 |
|
|
|
M20* 1.5 |
|
|
|
|
|
|
2 |
|
|
|
1/2NPT |
|
|
|
|
|
|
|
3 |
|
|
|
Special available |
|
|
Insertion Length
|
|
|
|
|
|
|
L0 |
|
|
Rod Type: Standard (300–500mm) |
|
|
|
|
|
|
|
LA |
|
|
Extended (500–3000mm) |
|
|
|
|
|
|
|
|
LB |
|
|
Cable Type: Extended (3000–10000mm) |
|
|
|
|
|
|
|
|
LC |
|
|
Compact Rod (150–300mm) |
|
|
|
|
|
|
|
|
LD |
|
|
Flat Plate Type |
|
|
|
|
|
|
|
|
L... |
|
|
Custom |
|
|
Temperature Range
|
|
|
|
|
|
|
|
T |
|
Temperature：-40-80℃ |
|
|
|
|
|
|
|
|
T... |
|
Other max values available (Max 260°C) |
|
|
Pressure Range
|
|
|
|
|
|
|
|
|
P |
Normal pressure |
|
|
|
|
|
|
|
|
|
P... |
Custom pressure values (bar) |
|
|
Note: This selection table is for technical reference only. Final factory model codes will reflect selected options. |
||||||||||
